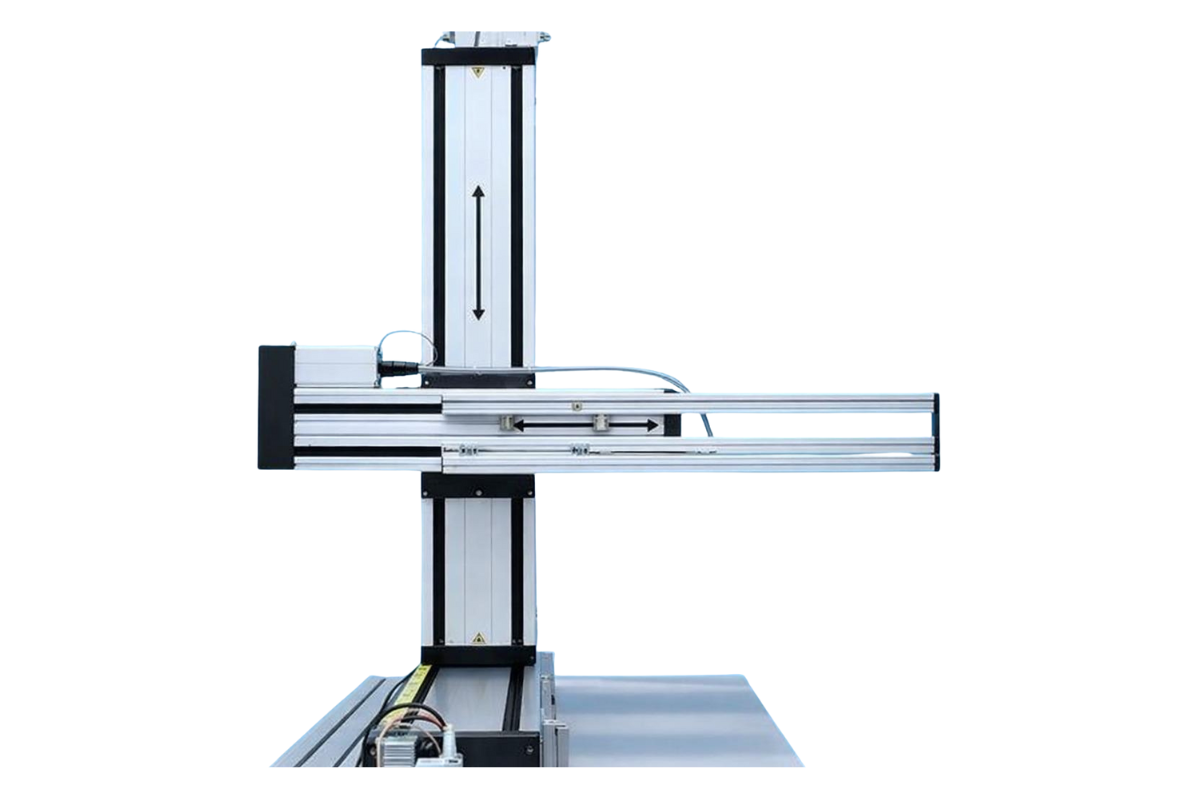

A 3-axis traverse mechanism is a precision linear motion system that enables controlled movement along three mutually perpendicular axes—X, Y, and Z. Each axis provides independent translational motion, allowing accurate positioning of tools, sensors, probes, or workpieces in three-dimensional space. Such mechanisms are fundamental to CNC machines, coordinate measuring machines (CMMs), inspection rigs, robotic positioning systems, and laboratory automation.

The system typically consists of linear guides/rails, drive elements (ball screws, lead screws, belt drives, or linear motors), actuators (stepper or servo motors), and feedback devices (encoders or linear scales). Motion controllers synchronize axis movement to achieve precise paths, repeatability, and smooth acceleration/deceleration. Structural components are designed to minimize deflection and vibration, ensuring positional accuracy under load.

In industrial and research applications, 3-axis traverse mechanisms support tasks such as machining, measurement, scanning, material handling, and process automation. Their modular nature allows customization of stroke length, load capacity, speed, and accuracy. According to recent industry coverage in manufacturing and automation journals, demand continues to grow due to increased adoption of CNC machining, additive manufacturing, and automated inspection systems.

Key Features & Advantages

• Independent X, Y, Z linear axes with orthogonal arrangement

• High-precision linear guides and bearings

• Choice of drive systems: ball screw, lead screw, belt, or linear motor

• Stepper or servo motors with closed-loop feedback

• Rigid structural frame to reduce vibration and backlash

• Configurable travel range, load capacity, and speed

• Compatibility with CNC controllers, PLCs, and motion control software
